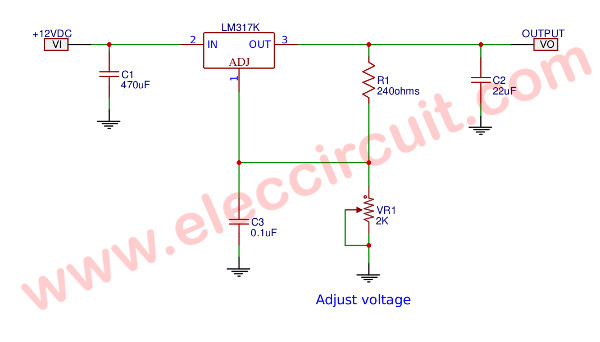

This circuit is DC converter low voltage , 12V from be 1.25V to 10Vdc by can give current topmost get about 1.5A. You should use IC number LM317K because have electric many power more the number LM317T. By should hold heat sink. That have large-sized with. The R4 use for fine decorate voltage output. The C1,C3 , and , C2 , for decrease all noise well. The detail is other , see in the circuit.
circuit source by joe (aircraftdesigner)
